Partitech Sonata Extra Bundle : Layout setup

Introduction

Setting up your layout in SonataPage is a crucial step in creating a well-structured and visually appealing website. This guide will help you understand the layout configuration process within the SonataPage bundle.

Prerequisite

Before proceeding, make sure you have read the main documentation of SonataPage: Read the SonataPage Documentation

Configuration Steps

Step 1: Define Your Layout Configuration

Start by defining your layout in a YAML configuration file. Here is an example:

partitech_index:
  path: 'demo_index.html.twig'
  name: 'Partitech Index'
  containers:
    logo:
      name: Logo
    header:
      name: Header
    recherche:
      name: Recherche
    content:
      name: Contenu
    footer:
      name: Footer
  matrix:
    layout: |
      LLHHHHHHHHHHHHHHHHRR
      CCCCCCCCCCCCCCCCCCCC
      CCCCCCCCCCCCCCCCCCCC
      CCCCCCCCCCCCCCCCCCCC
      CCCCCCCCCCCCCCCCCCCC
      CCCCCCCCCCCCCCCCCCCC
      CCCCCCCCCCCCCCCCCCCC
      FFFFFFFFFFFFFFFFFFFF
    mapping:
      L: logo
      H: header
      R: recherche
      C: content
      F: footer

Step 2: Main Template Configuration

Set the path to your main template. This template will be used to render the entire page:

• Path: layout_partitech_index.html.twig

Step 3: Configuring Containers

Define containers in the configuration. Containers are segments in your layout such as logo, header, content, etc.

• Containers: Define the containers and assign them names for easy identification.

Step 4: Implement Containers in Template

Place these containers in your main template file using the following syntax:

{{ sonata_block_render_event('breadcrumb', { 'context': 'logo', 'current_uri': app.request.requestUri }) }}
{{ sonata_block_render_event('breadcrumb', { 'context': 'header', 'current_uri': app.request.requestUri }) }}
{{ sonata_block_render_event('breadcrumb', { 'context': 'recherche', 'current_uri': app.request.requestUri }) }}
{{ sonata_block_render_event('breadcrumb', { 'context': 'content', 'current_uri': app.request.requestUri }) }}
{{ sonata_block_render_event('breadcrumb', { 'context': 'footer', 'current_uri': app.request.requestUri }) }}

Step 5: Matrix and Mapping Configuration

Configure the matrix to represent the content layout and map the layout codes (L, H, R, C, F) to the respective containers.

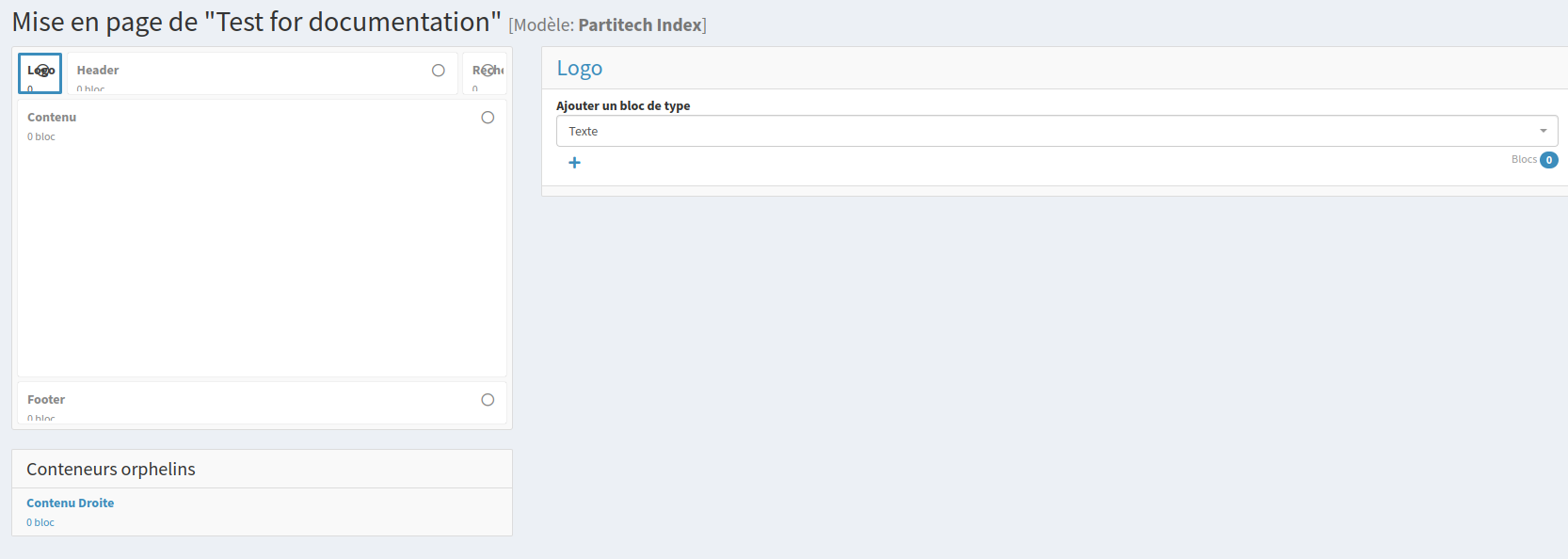

• Matrix: This is the visual representation of your template layout, which aids in selecting containers in the Sonata admin interface.
• Mapping: Helps in linking the matrix layout codes to the defined containers.

Conclusion

By following these steps, you'll have a well-structured layout setup for your SonataPage. This setup will not only make your pages visually coherent but also streamline your workflow in managing page content and layout.
